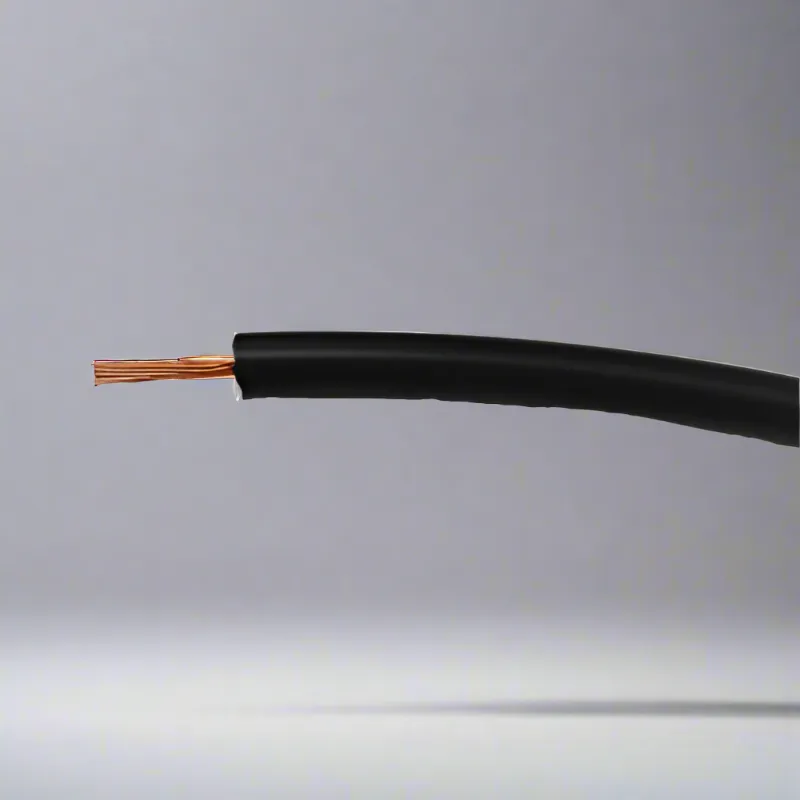

High Tension Lead
C7HT is a high tension automotive cable, used in ignition.
| Conductor: | Plain annealed copper |
|---|---|
| Insulation: | PVC V75 |
| Sheath: | PVC 4V-75 |
| Voltage: | 100V DC or 32V AC and must not be connected to mains power supplies. |
| Standards: | AS/NZS 1125 (Conductor) and AS/NZS 3808 (PVC) |
| Packing Length: | 30m, 100m |
| Code | Area mm² | Industry | Strands No./mm | Nom. O/D.mm | Insulation Thickness mm | Cont. Duty Amps# | Voltage Drop A/m | Load Amps |
|---|---|---|---|---|---|---|---|---|
| C7HT | 1.13 | 7 | 16/0.30 | 7 | 2.70 | 10 | 0.0164 | 6 |
